Brilliance Low Voltage Transformer
Product Overview
The Brilliance Low Voltage Transformer family is designed to power compatible low-voltage landscape lighting systems. Available models include 75W, 150W, 300W, and 600W stainless steel transformer options, giving installers multiple capacities for small accent lighting layouts, path lighting systems, and larger outdoor lighting projects.
Key Features:
- Multiple Wattage Options: Choose from 75W, 150W, 300W, and 600W transformer models.
- Stainless Steel Finish: Stainless steel case construction is used across the transformer family.
- Multi-Tap Design: Multiple voltage taps help support proper voltage delivery across different lighting runs.
- Photocell / Timer Support: The 75W model includes photocell/timer capability, while larger models are compatible with photocell/timer setups.
- Primary-Side Dimming: Transformer specifications note dimming on the primary side.
Common Uses:
- Low-voltage landscape lighting systems
- Path, accent, and directional lighting layouts
- Outdoor lighting projects with multiple fixture runs
- Transformer replacement or capacity planning for Brilliance LED systems
Technical Specifications:

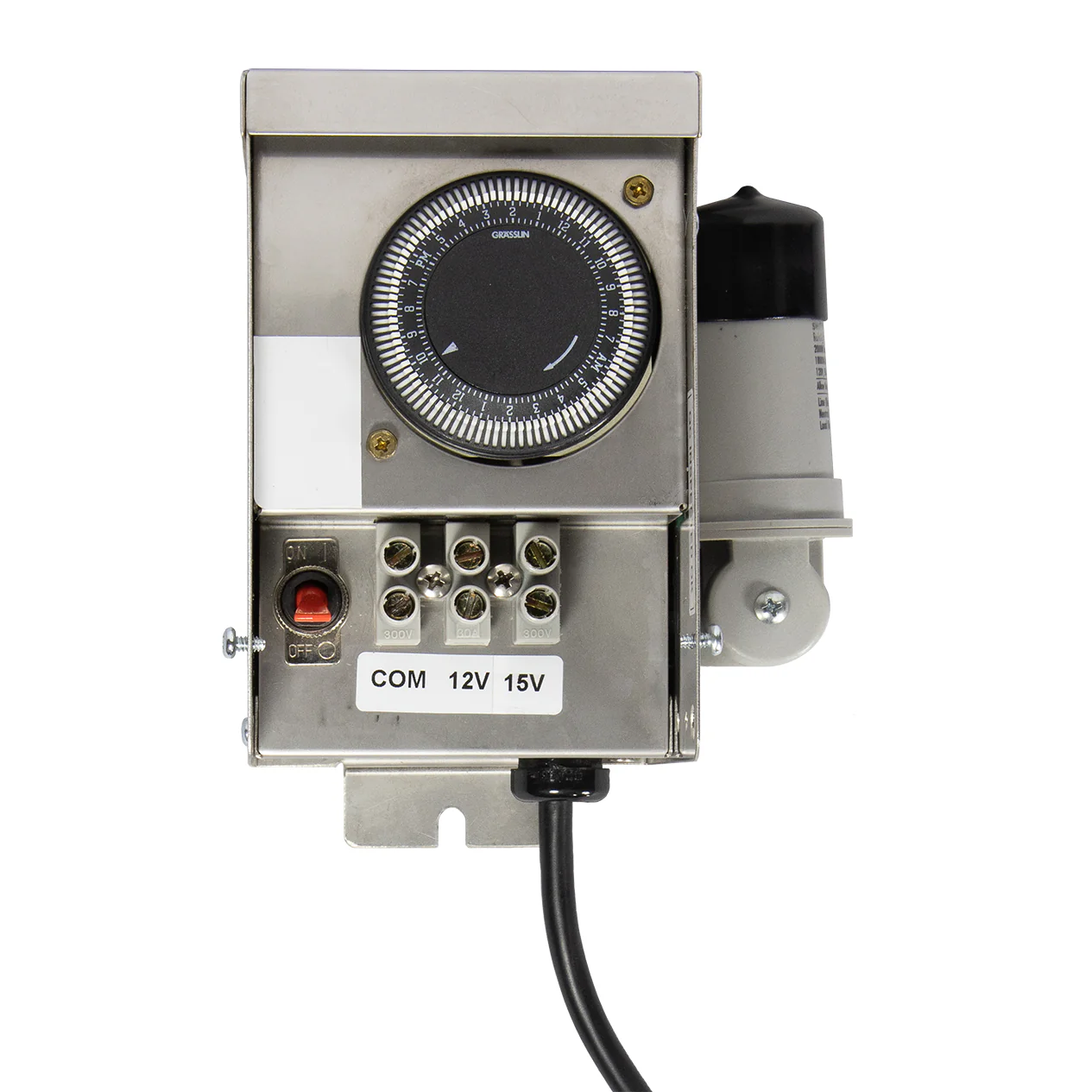

- 75W Model: 12V and 15V taps; 3.75 in. W x 4.25 in. D x 5.75 in. H; photocell/timer included

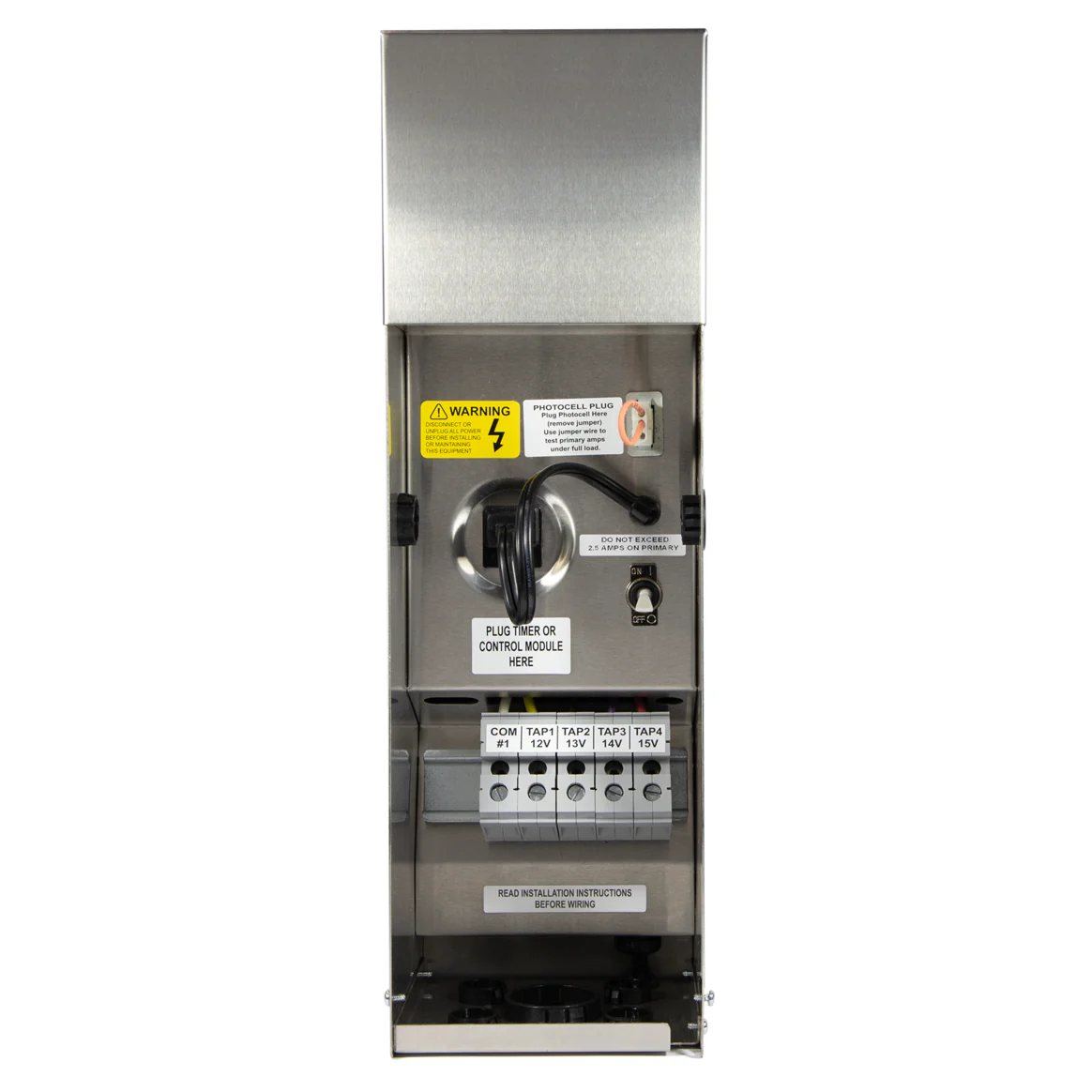

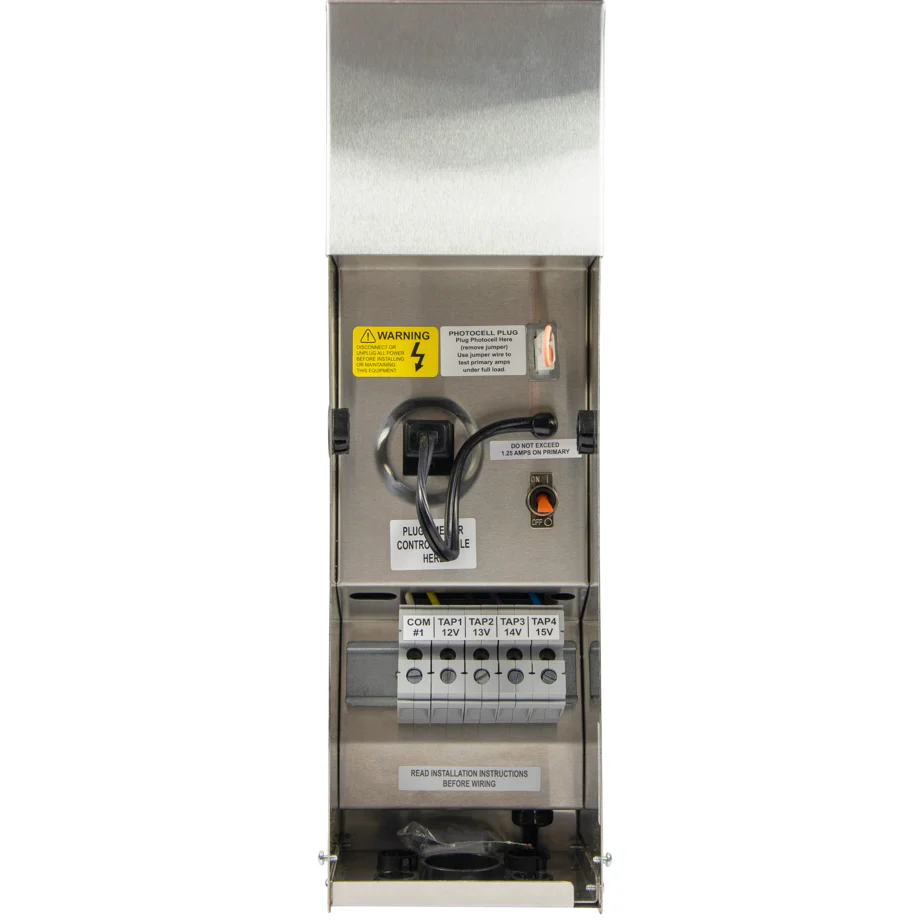

- 150W Model: 12V, 13V, 14V, and 15V taps; 5.25 in. W x 5.25 in. D x 17 in. H; photocell/timer compatible

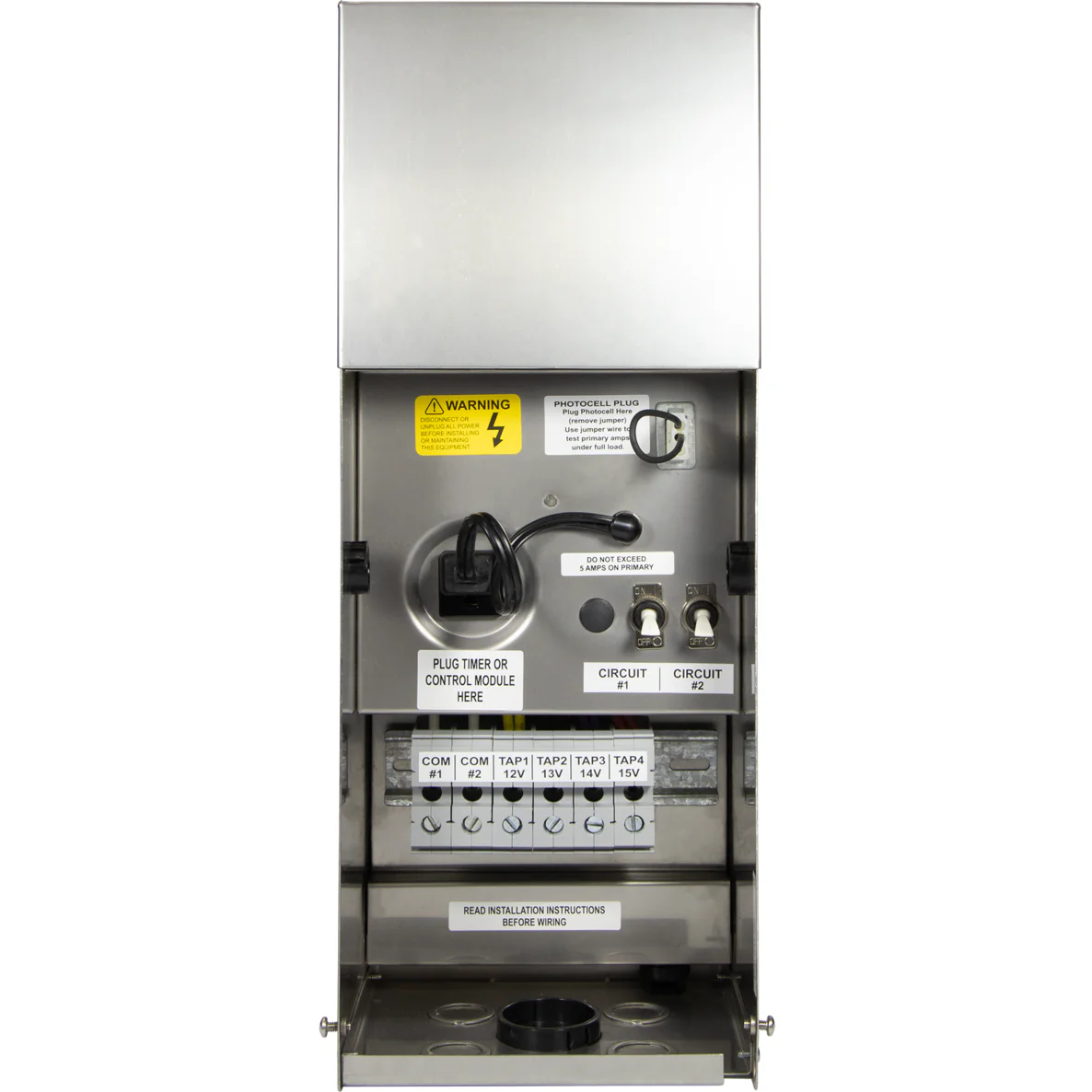

- 300W Model: 12V, 13V, 14V, and 15V taps; 5.25 in. W x 5.25 in. D x 17 in. H; photocell/timer compatible
- 600W Model: 12V, 14V, 16V, 18V, 20V, and 22V taps; 6.50 in. W x 5.50 in. D x 17 in. H; photocell/timer compatible
- Finish: Stainless steel
- Warranty: Lifetime
Installation & Compatibility Notes:
- Select transformer wattage based on total fixture load, wire run length, voltage drop, and project layout.
- Use the proper voltage tap for the lighting run and verify voltage at the fixtures during installation.
- Electrical installation should follow local code and be completed by a qualified professional where required.
FAQ
Which wattage transformer should I choose?
Choose the transformer based on the total connected lighting load, wire distance, and voltage drop. Leave room for safe capacity planning and follow Brilliance installation guidance.
Are these transformers multi-tap?
Yes. The transformer family includes multi-tap models with voltage taps that vary by wattage.
Can these be used with timers or photocells?
The 75W model includes photocell/timer capability, while the 150W, 300W, and 600W models are listed as photocell/timer compatible.
