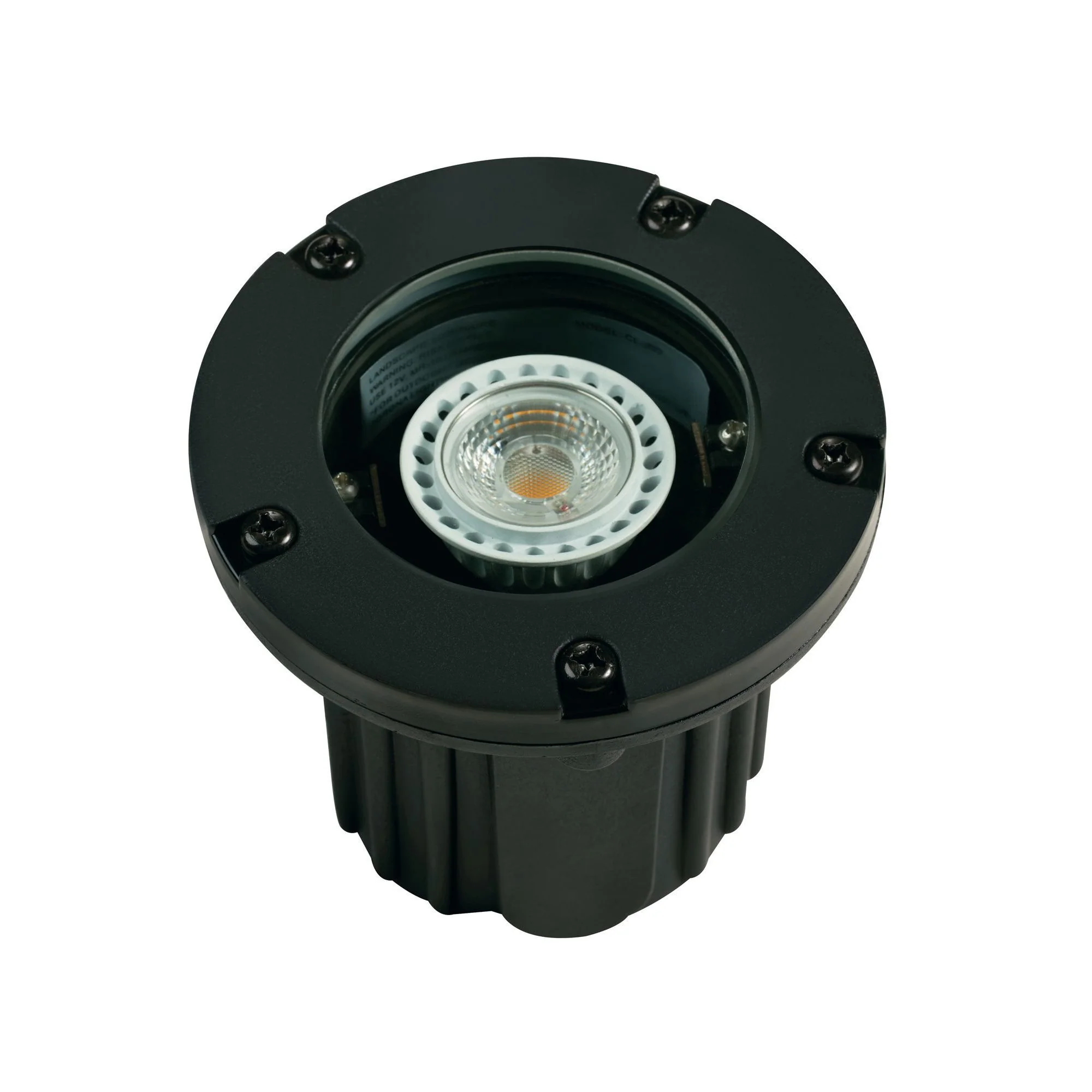

Corona Lighting CL-337-BK Black MR16 Well Light, No Lamp
Product Overview
The Corona Lighting CL-337-BK is a black MR16 well light for discreet in-grade accent lighting in a compatible 12V landscape system. Its injection-molded composite housing and faceplate hold a flat heat-resistant glass lens over an adjustable ceramic bi-pin socket. A compatible MR16 lamp is sold separately, giving the installer control over the final lumen output, beam spread, and color temperature used to illuminate trees, walls, columns, and landscape focal points.
Choose the lamp and installation components together. Verify the lamp's size, voltage, wattage, beam angle, and suitability for the fixture, and include its wattage in the remote-transformer load. The in-ground location should be prepared for drainage, cable routing, future service, and the specified direct-burial or concrete-encasement method. The prewired cord must join an approved low-voltage circuit, and the cable run should be evaluated for voltage drop so the correct wire gauge and transformer tap can be used.
Key Features:
- Black MR16 well light
- Injection molded composite housing and faceplate
- Clear heat-resistant flat glass lens
- Adjustable ceramic bi-pin socket with retention clip
- Prewired with 3 ft 18-2 SJT-W direct burial cord
- Designed for in-ground direct burial or concrete encasement
- Lamp sold separately
Common Uses:
- In-ground landscape uplighting
- Tree and architectural accent lighting
- Low-voltage outdoor lighting projects
Technical Specifications:
- Brand: Corona Lighting
- SKU: CL-337-BK
- Finish: Black
- Housing: Injection molded composite
- Lens: Clear heat-resistant flat glass
- Accepted Lamp: 12V MR16, 50W maximum
- Wiring: 3 ft 18-2 SJT-W direct burial cord
- Warranty: Limited 10-year fixture warranty
Dimensions:
- Overall Height: 4-5/8 in.
- Diameter: 4-7/8 in.
Installation & Compatibility Note:
Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, burial or concrete mounting method, and local electrical requirements before installation. Concrete pour kit CX-237 is listed for concrete mounting applications.
FAQ
Is a lamp included?
No, the compatible MR16 lamp is sold separately.
What lamp type does it accept?
It is listed for compatible 12V MR16 lamps, 50W maximum.
How is it commonly mounted?
It is listed for in-ground direct burial or concrete encasement.
