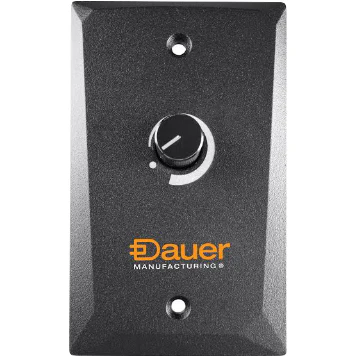

Dauer 501087 Sunset Low Voltage Dimmer, 12V, 10A
Product Overview
The Dauer 501087 Sunset is a low-voltage dimmer for compatible 12-15VAC lighting systems. It provides smooth trailing-edge dimming with no minimum load requirement and supports many compatible dimmable lamps, including dimmable LEDs.
The dimmer installs on the low-voltage side of the transformer, so compatibility must be checked across the transformer, every connected lamp or integrated fixture, and the total circuit load. Do not assume that a lamp labeled dimmable will operate correctly with every transformer and control combination. Keep the connected current within the listed 10A maximum and verify the circuit voltage before installation. Plan a location that allows adjustment and service while protecting the device as required; outdoor use requires placement inside an approved weatherproof enclosure rather than exposing the IP20 housing directly to the environment.
Key Features:
- 12-15VAC operating range
- 10A maximum load
- Smooth trailing-edge dimming
- No minimum load requirement
- Aluminum housing
- Protected by a 20A wedge fuse
Common Uses:
- Dimming compatible landscape lighting circuits
- Adjusting path and accent-light brightness
- Low-voltage systems using compatible dimmable LED lamps
- Lighting zones requiring manual brightness control
Technical Specifications:
- SKU: 501087
- Product Type: Low-voltage dimmer
- Operating Voltage: 12-15VAC
- Maximum Load: 10A
- Dimming Method: Trailing edge
- Fuse: 20A wedge fuse
- Housing: Aluminum
- IP Rating: IP20
- Dimensions: 2.756 in. width x 4.488 in. height
- Warranty: 3 years
Compatibility and Installation Notes:
Confirm that every lamp and transformer in the circuit is compatible with dimming. For outdoor use, install the dimmer inside a UL- or ETL-approved weatherproof box as specified for this product.
FAQ:
What voltage systems are compatible?
The dimmer is designed for compatible 12-15VAC lighting systems.
What is the maximum load?
The maximum load is 10A.
Can it be installed outdoors by itself?
No. Outdoor use requires installation inside a UL- or ETL-approved weatherproof box.
