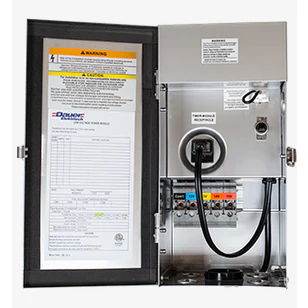

Dauer 490541 150W Stainless Steel Low Voltage Transformer
Product Overview
The Dauer 490541 is a 150W stainless steel transformer for compatible low-voltage landscape lighting systems. Multiple output taps help compensate for voltage drop across lighting runs, while the photocell receptacle and timer plug support common lighting-control accessories.
Transformer selection begins with the combined operating load of every lamp and integrated fixture, plus the effect of wire length and circuit layout. Keep the connected load within the listed 150W capacity and allow practical design margin rather than planning at the absolute limit. The 12V through 15V taps are used to address voltage drop, but the correct tap should be chosen from actual system measurements and installation guidance—not as a substitute for suitable cable gauge. Before installation, confirm the 120V supply, mounting location, grounding, cable entries, terminal organization, control accessories, and applicable electrical requirements.
Key Features:
- 150W low-voltage transformer
- Stainless steel housing with removable hinged door
- 12V, 13V, 14V, and 15V output taps
- One common tap and amp loop
- Photocell receptacle and timer plug
- Heavy-duty grounded 5 ft power cord
Common Uses:
- Residential landscape lighting systems
- Path, accent, and deck-lighting circuits
- Indoor or outdoor transformer installations
- Systems using compatible photocell or timer controls
Technical Specifications:
- SKU: 490541
- Rated Output: 150W / 12.5A
- Input: 120V, 60Hz, 1.25A
- Output Taps: 12V, 13V, 14V, and 15V
- Breaker: 12.5A
- Housing: Stainless steel
- Agency Listing: ETL listed; conforms to ANSI/UL 1838
- Dimensions: 11.75 in. height x 5.8 in. width x 5.5 in. depth
- Warranty: Lifetime
Compatibility and Installation Notes:
Calculate the total connected fixture wattage and account for cable length and voltage drop before selecting an output tap. Follow the transformer instructions and applicable electrical requirements for mounting, wiring, grounding, and outdoor installation.
FAQ:
What is the maximum transformer capacity?
The transformer is rated for 150W.
Why are multiple voltage taps included?
The 12V through 15V taps allow the installer to select an output appropriate for the lighting run and voltage-drop conditions.
Can it work with a photocell or timer?
It includes a photocell receptacle and timer plug for compatible controls.
