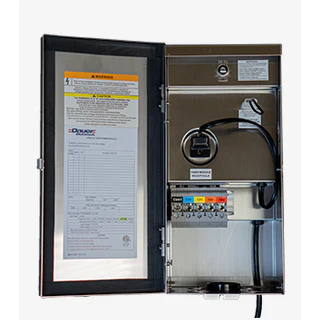

Dauer 490542 300W Stainless Steel Low Voltage Transformer
Product Overview
The Dauer 490542 is a 300W stainless steel transformer for compatible low-voltage landscape lighting systems. Multiple output taps help compensate for voltage drop across lighting runs, while the photocell receptacle and timer plug support common lighting-control accessories.
The larger 300W capacity can support more fixtures or higher-load circuits, but the design must still be based on the total connected wattage, cable lengths, branch arrangement, and measured voltage at the fixtures. Leave operating margin rather than filling the transformer to its absolute rating, and use appropriate wire gauge to control voltage drop. The 12V through 15V taps provide adjustment for compatible runs after the circuit has been designed correctly. Confirm the 120V supply, mounting location, grounding, cable entries, breaker and terminal organization, accessory compatibility, and applicable electrical requirements before installation.
Key Features:
- 300W low-voltage transformer
- Stainless steel housing with removable hinged door
- 12V, 13V, 14V, and 15V output taps
- One common tap and amp loop
- Photocell receptacle and timer plug
- Heavy-duty grounded 5 ft power cord
Common Uses:
- Larger residential landscape lighting systems
- Multiple path, accent, and deck-lighting circuits
- Indoor or outdoor transformer installations
- Systems using compatible photocell or timer controls
Technical Specifications:
- SKU: 490542
- Rated Output: 300W / 25A
- Input: 120V, 60Hz, 2.5A
- Output Taps: 12V, 13V, 14V, and 15V
- Breaker: 25A
- Housing: Stainless steel
- Agency Listing: ETL listed; conforms to ANSI/UL 1838
- Dimensions: 13 in. height x 6.5 in. width x 6.3 in. depth
- Warranty: Lifetime
Compatibility and Installation Notes:
Calculate the total connected fixture wattage and account for cable length and voltage drop before selecting an output tap. Follow the transformer instructions and applicable electrical requirements for mounting, wiring, grounding, and outdoor installation.
FAQ:
What is the maximum transformer capacity?
The transformer is rated for 300W.
Why are multiple voltage taps included?
The 12V through 15V taps allow the installer to select an output appropriate for the lighting run and voltage-drop conditions.
Can it work with a photocell or timer?
It includes a photocell receptacle and timer plug for compatible controls.
