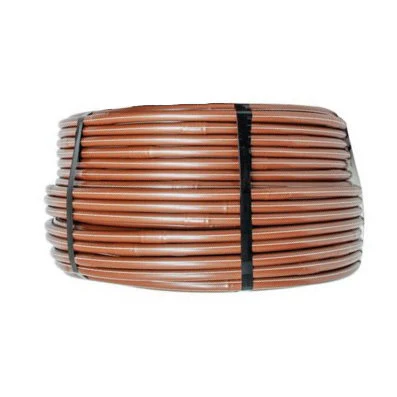

DIG A5-12P-CV Excel PCD Check Valve Dripline, 1000 ft, 12 in. Spacing, 0.6 GPH
Product Overview
The DIG A5-12P-CV is a 1000 ft pressure-compensating dripline with 0.6 GPH dual-outlet emitters spaced every 12 in. Built-in check valves help reduce drainage after system pressure drops.
Key Features:
- 0.6 GPH pressure-compensating emitters
- 12 in. emitter spacing
- 1000 ft brown dripline
- Built-in check valves
- Dual outlets provide redundancy
- Suitable for compatible subsurface layouts
Common Uses:
- Large landscape irrigation zones
- Sloped or elevation-sensitive layouts
- Subsurface beds and planting rows
Technical Specifications:
- Emitter Flow: 0.6 GPH
- Operating Pressure: 12-50 PSI
- Check-Valve Sealing Pressure: 2.5 PSI
- Check-Valve Opening Pressure: 4.3 PSI
- Filter Requirement: Minimum 150 mesh
- Minimum Bend Radius: 1 ft
Dimensions:
- Length: 1000 ft
- Emitter Spacing: 12 in.
- Tubing: 0.570 in. ID x 0.670 in. OD
Installation Notes:
Plan zone length and flushing points before installation. Use correctly sized fittings, regulated pressure, and at least 150-mesh filtration.
FAQ:
Does the dripline include check valves?
Yes.
How long is the coil?
1000 ft.
Why Buy From Big Frog Supply?
Big Frog Supply provides clear product information, helpful support, and convenient online ordering for drip-irrigation projects.
