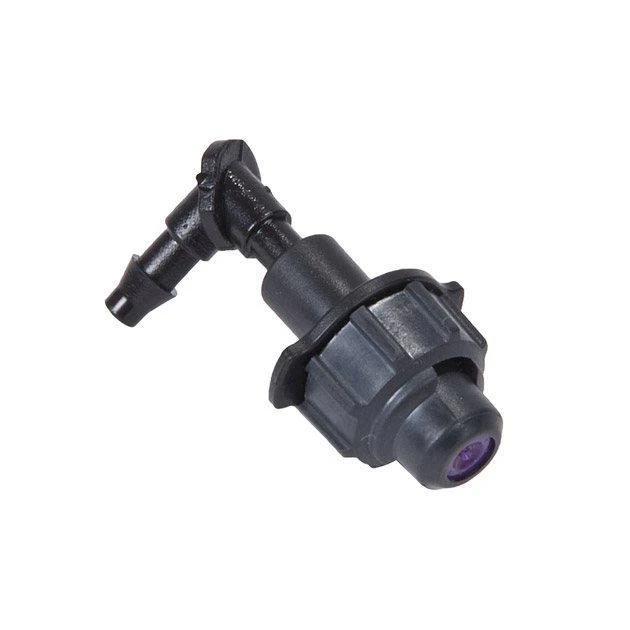

DIG 07-057 EXL Series Fogger with Barbed Elbow, 3 GPH
Product Overview
The DIG 07-057 EXL Series fogger combines a 3 GPH fine-mist nozzle with a 1/4 in. barbed elbow. The angled connection supports overhead cooling, humidification, and plant-moisture applications in systems operating from 35 to 80 PSI.
Key Features:
- 3 GPH fogger model
- 1/4 in. barbed elbow connection
- Fine mist output
- Vortex-style flow design
- Three-part construction with Buna-N O-ring
- Polyester body and acetal nozzle components
Common Uses:
- Greenhouse and nursery humidification
- Propagation areas
- Overhead evaporative cooling
- Installations benefiting from an angled barb
Technical Specifications:
- Model Flow Rating: 3 GPH
- EXL Series Flow Range: 0.8-3 GPH
- Operating Pressure: 35-80 PSI
- Connection: 1/4 in. barbed elbow
- Filter Requirement: Minimum 200 mesh
Installation and Use Notes:
Push the barb fully into compatible tubing and use pressure regulation with filtration of at least 200 mesh. Flush the line before installation.
FAQ:
Why use the elbow connection?
It changes the connection direction to support the required installation angle.
What filtration is required?
Use filtration of at least 200 mesh.
Why Buy From Big Frog Supply?
Big Frog Supply provides clear product information, helpful support, and convenient online ordering for micro-irrigation projects.
