Corona Lighting CL-316B-GM Gun Metal MR16 Well Light, No Lamp
Product Overview

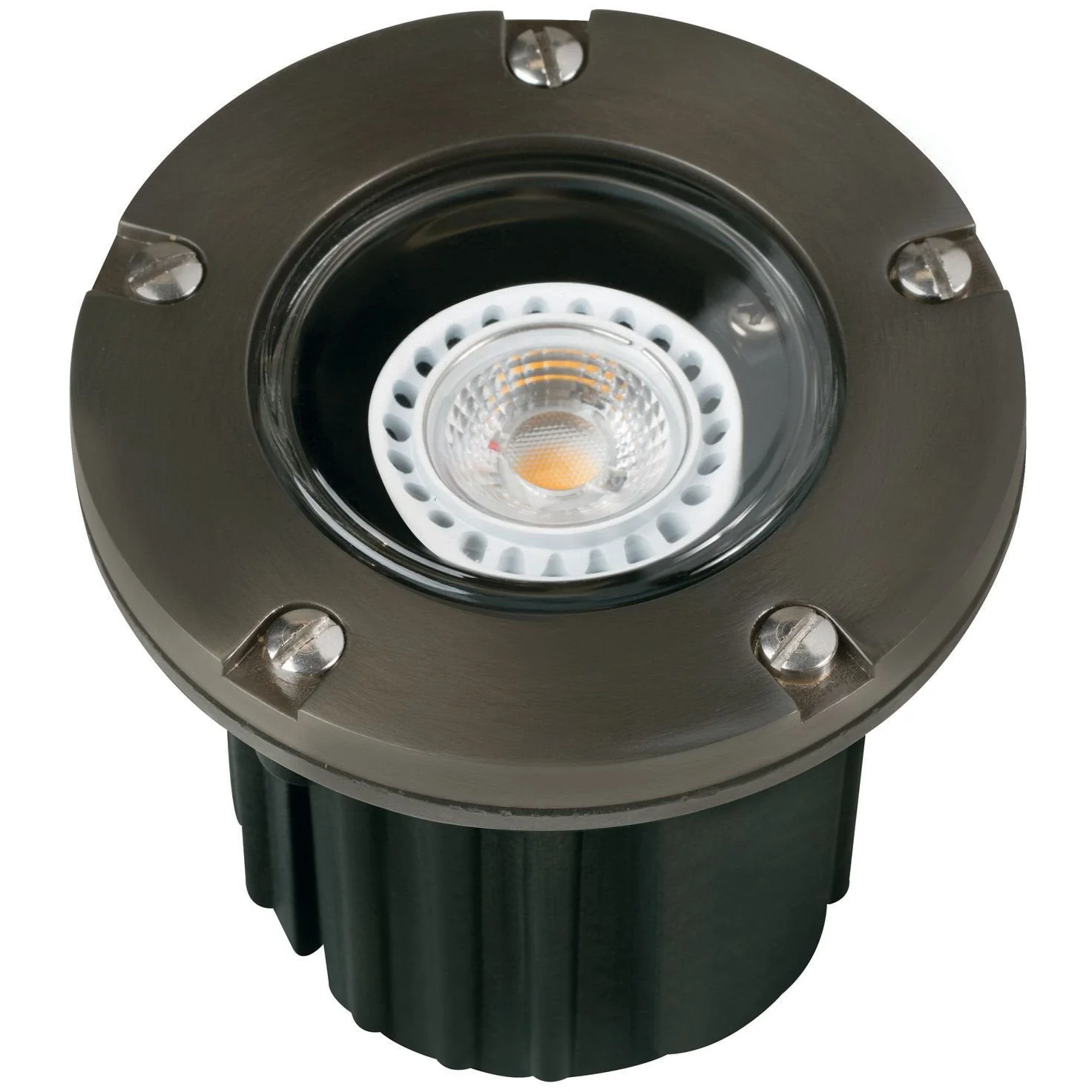

The Corona Lighting CL-316B-GM is a gun metal MR16 well light that positions a low-voltage lamp at grade for directional landscape uplighting. Its composite housing is paired with a diecast brass faceplate and a flat, heat-resistant glass lens. An adjustable ceramic bi-pin socket accepts a compatible 12V MR16 lamp, sold separately, allowing the lighting designer to select the brightness, beam width, and color temperature that fit the tree, wall, column, or other feature being illuminated.
Plan the CL-316B-GM as part of a complete low-voltage system rather than as a self-contained light source. Confirm lamp dimensions, voltage, wattage, beam angle, and outdoor-fixture compatibility, and add the chosen lamp load to the transformer calculation. In-grade performance also depends on drainage, cable routing, service access, and the correct direct-burial or concrete installation method. For concrete applications, verify the listed CX-237 pour kit before construction. Select wire gauge and transformer taps with the cable run and expected voltage drop in mind.
Key Features:
- Gun metal MR16 well light
- Injection molded composite housing
- Diecast brass faceplate with silicone O-ring gasket
- Clear heat-resistant flat glass lens
- Adjustable ceramic bi-pin socket
- Prewired with 3 ft 18-2 SJT-W direct burial cord
- Lamp sold separately
Common Uses:
- In-ground landscape uplighting
- Tree and architectural accent lighting
- Low-voltage outdoor lighting projects
Technical Specifications:
- Brand: Corona Lighting
- SKU: CL-316B-GM
- Finish: Gun Metal
- Housing: Injection molded composite
- Faceplate: Diecast brass
- Lens: Clear heat-resistant flat glass
- Accepted Lamp: 12V MR16, 50W maximum
- Wiring: 3 ft 18-2 SJT-W direct burial cord
Dimensions:
- Overall Height: 4-5/8 in.
- Diameter: 4-7/8 in.
Installation & Compatibility Note:
Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, burial or concrete mounting method, and local electrical requirements before installation. Concrete pour kit CX-237 is listed for concrete mounting applications.
FAQ
Is a lamp included?
No, the compatible MR16 lamp is sold separately.
What lamp type does it accept?
It is listed for compatible 12V MR16 lamps, 50W maximum.
Can it be installed in concrete?
It is listed for in-ground direct burial or concrete encasement; the CX-237 concrete pour kit is noted for concrete mounting.
