Franklin Electric 2801054915 Quick-Disconnect Control Box, 1/2 HP, 230V
Product Overview
The Franklin Electric 2801054915 is a QD quick-disconnect control box for compatible 1/2 HP / 0.37 kW, 230V, 60 Hz, single-phase, 3-wire submersible motors. In a 3-wire well-pump system, the external control box houses the start and control components used to start the motor and support normal operation. This product is intended as a matched electrical component for a correctly sized Franklin motor system, not as a universal replacement selected only by enclosure size or appearance.
The box uses a Type 3R enclosure and provides access to field-serviceable control components. Correct matching is essential because motor horsepower, voltage, phase, wiring configuration, and amperage must agree with the control-box rating. Before ordering, compare the motor nameplate and the existing control-box model with the confirmed specifications below. Also verify the installation environment, disconnect and overcurrent protection, conductor sizing, grounding, conduit entry, pressure-switch circuit, and local electrical requirements. A control box does not replace the pressure switch, motor overload planning, or other system protection required by the pump installation.
For replacement work, compare the complete model number rather than relying on enclosure dimensions or a similar-looking relay layout. Internal start components are selected for a specific motor range, and an incorrect box can cause starting problems or motor damage. The pressure switch and branch-circuit protection must also be evaluated as parts of the complete pump-control system.
Key Features:
- QD quick-disconnect control-box configuration
- For compatible 1/2 HP / 0.37 kW, 230V, 60 Hz motors
- Single-phase, 3-wire motor application
- Type 3R enclosure
- Field-serviceable start and control components
- Designed for matching Franklin submersible-motor systems
Common Uses:
- Starting and controlling a compatible 3-wire submersible well motor
- Replacing a matching Franklin control box with the same electrical rating
- Residential, agricultural, or light commercial well systems using a compatible motor
- Pump systems where the motor start components are located in an external control box
Technical Specifications:
- Model: 2801054915
- Motor Rating: 1/2 HP / 0.37 kW
- Voltage: 230V
- Frequency: 60 Hz
- Phase: Single-phase
- Motor Wiring: 3-wire
- Control Box Type: QD quick-disconnect
- Nominal Amps: 5A
- Maximum Amps: 6A
- Enclosure Rating: Type 3R
- Operating Temperature: 14-122Ā°F
- Storage Temperature: -13 to 144Ā°F

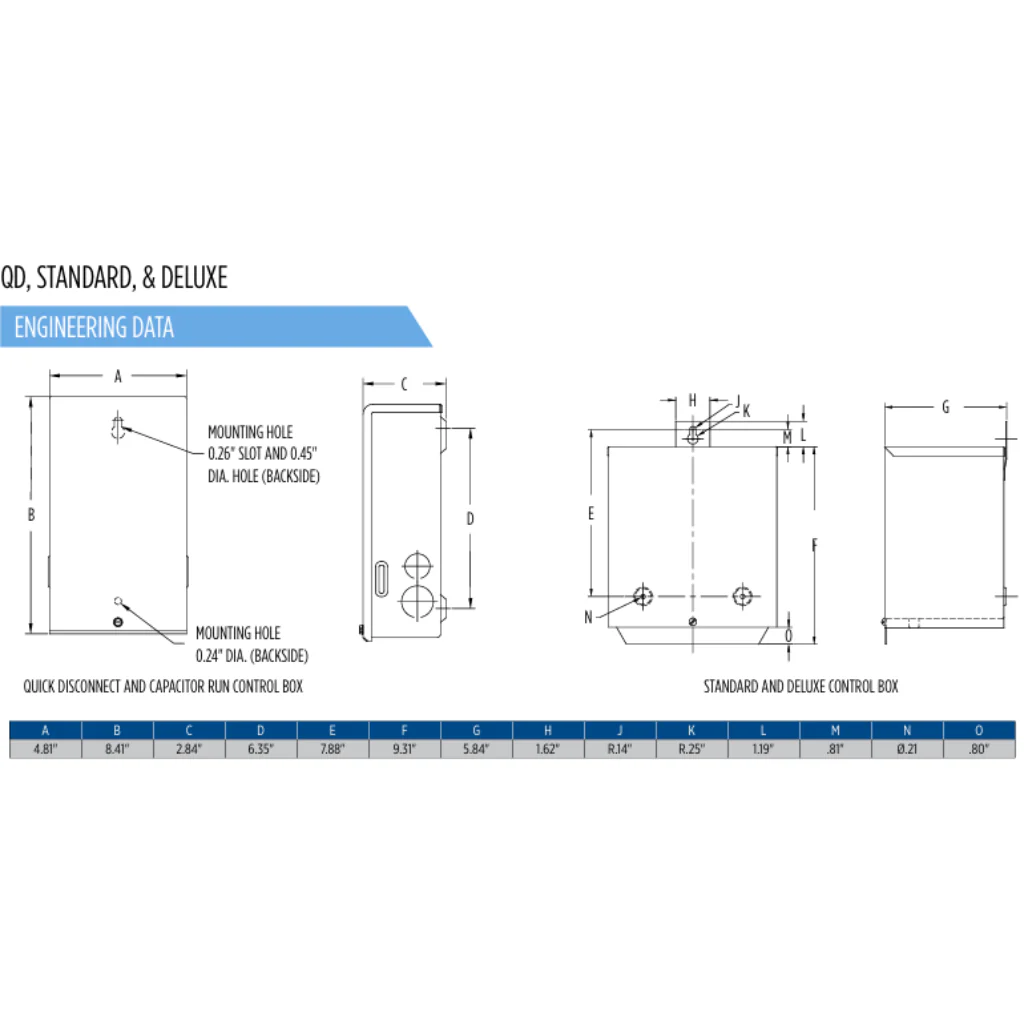

Dimensions:
- Length: 4.81 in.
- Width: 2.84 in.
- Height: 8.41 in.
- Weight: 3.75 lb
Compatibility and Electrical Notes:
Match the control box to the exact motor horsepower, voltage, phase, and 3-wire configuration before installation. Do not use this box with a 2-wire motor, and do not substitute a different horsepower rating. Follow the Franklin Electric control-box documentation and applicable electrical requirements for mounting, conductor sizing, grounding, disconnects, overcurrent protection, conduit, pressure-switch wiring, and startup. Turn off and verify power before service.
FAQ:
What type of motor uses this control box?
A compatible 1/2 HP / 0.37 kW, 230V, single-phase, 3-wire submersible motor.
Can it be used with a 2-wire motor?
No. A 2-wire motor contains its starting components and does not use this external 3-wire control box.
Can I choose a control box by horsepower alone?
No. Horsepower, voltage, phase, wiring configuration, amperage, and manufacturer compatibility must all match.
Is the pressure switch included in the control-box function?
The control box supports the motor start and control circuit, but the complete system still requires correctly selected pressure controls and electrical protection.
