Armada Technologies GFL3000 Ground Fault Locator
Product Overview

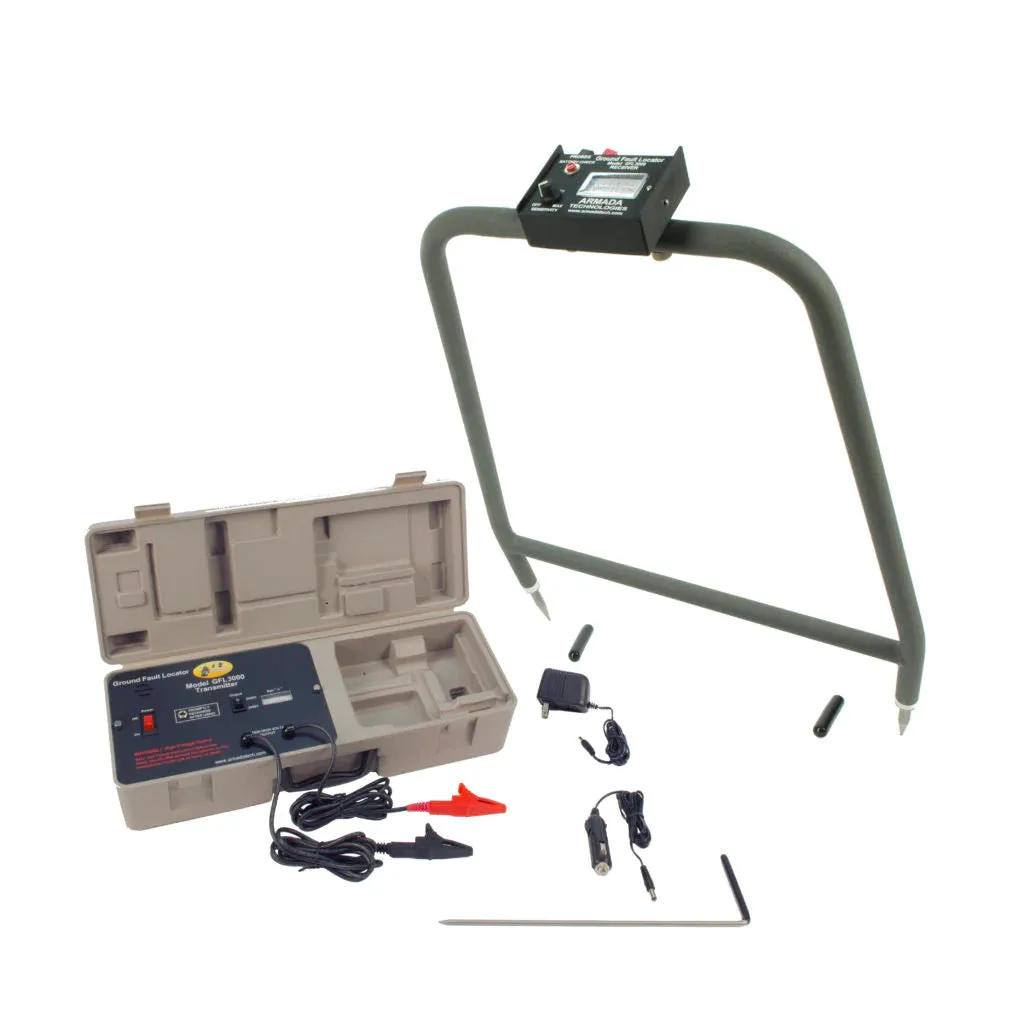

The Armada Technologies GFL3000 is an A-frame fault locator for pinpointing where insulation damage allows current to leak from a direct-buried conductor into the surrounding soil. After the cable route has been identified, the transmitter applies a pulsed high-voltage signal and the A-frame receiver indicates the direction toward the fault. This can help a technician narrow the excavation area instead of exposing a long section of cable.
The transmitter offers selectable 2400V or 3400V DC output for different locating conditions and includes a rechargeable 12V battery. The receiver uses a separate 9V battery. Because the tool generates high voltage, it must be used only on isolated cable by a trained person following the manual and site safety procedures. A separate cable locator is needed when the path is not already known.
Key Features:
- A-frame direct-buried cable fault locator
- Selectable 2400V or 3400V DC output
- Directional analog receiver feedback
- Rechargeable transmitter battery
- Wall and vehicle charging options
Common Uses:
- Irrigation wire insulation faults
- Landscape-lighting cable faults
- Direct-buried conductor repair
Technical Specifications:
- Transmitter Power: Included 12V rechargeable battery
- Receiver Power: 9V battery, not included
- Transmitter Weight: 9 lb
- A-Frame Weight: 3 lb
- Pulse: Approximately every 2 seconds
Safety Note:
Disconnect and isolate the target cable before connection. Follow all high-voltage safety instructions.
FAQ:
Does it map the wire route?
No. Use a cable locator first when the route is unknown.
What fault does it locate?
A point where current leaks from damaged insulation into the earth.
Why Buy From Big Frog Supply?
Big Frog Supply provides clear product information, helpful support, and convenient online ordering for professional locating equipment.
