Armada Technologies PRO290 Compact Underground Cable Locator
Product Overview
The Armada Technologies PRO290 is a compact underground cable locator for following de-energized irrigation, landscape-lighting, pet-fence, and other compatible buried conductors. Its transmitter applies a crystal-controlled 33 kHz signal, and the adjustable receiver uses audible and visual feedback to guide the operator along the wire path. The locator can also help narrow the position of a connected irrigation valve or identify where the signal changes at a suspected break.

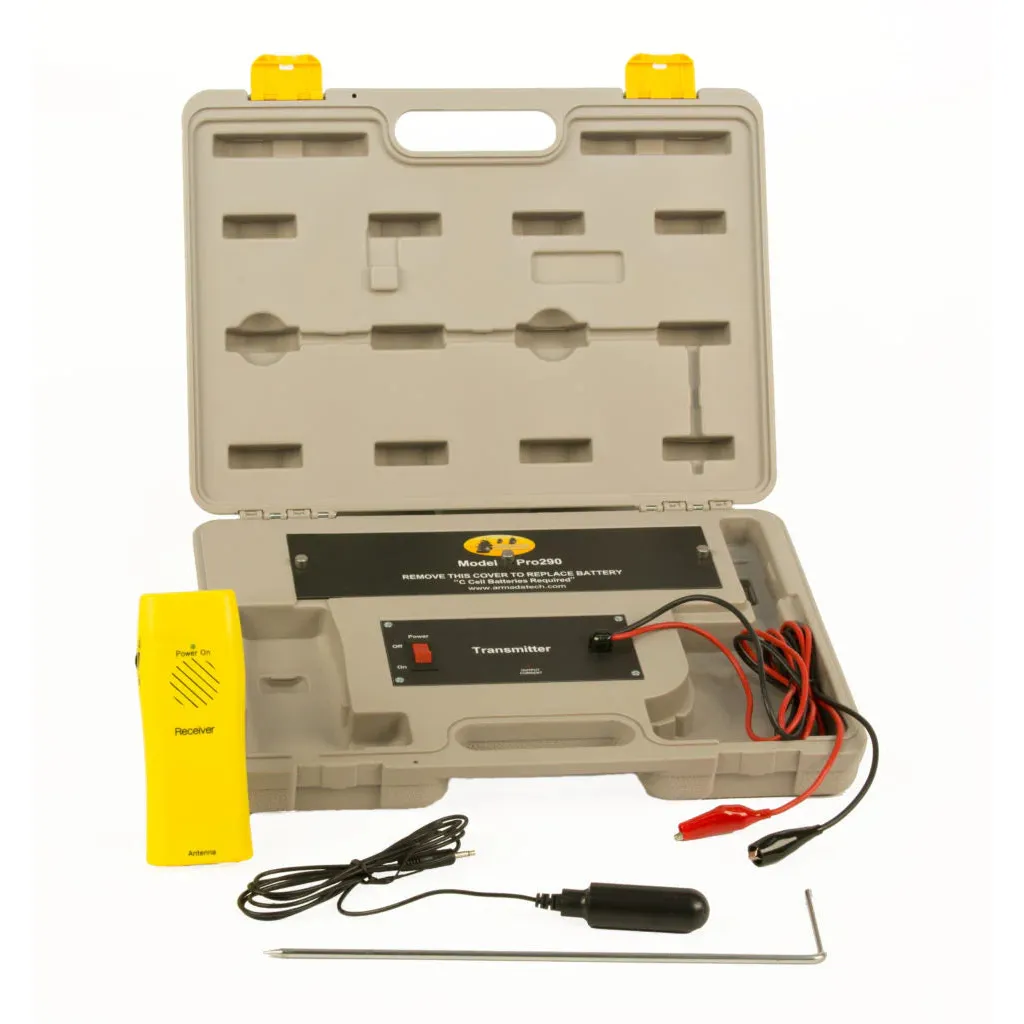

Listed performance is up to 4 ft deep and up to 1,000 ft in suitable conditions, though soil, grounding, interference, and conductor condition affect actual results. The portable 4.5 lb kit includes transmitter, receiver, clips, ground stake, and padded case. Proper isolation and transmitter grounding are important for accurate locating.
Key Features:
- Compact 33 kHz cable locator
- Adjustable receiver sensitivity
- Audio and visual feedback
- Complete padded field kit
- Useful for wire and valve locating
Common Uses:
- Tracing buried irrigation-control wire
- Locating landscape-lighting cable routes
- Following pet-fence and other compatible conductors
- Narrowing connected valve or suspected break locations
Technical Specifications:
- Depth: Up to 4 ft
- Distance: Up to 1,000 ft, condition dependent
- Output: 175V AC peak-to-peak
- Transmitter Power: Eight C batteries
- Receiver Power: One 9V battery
FAQ:
Can it trace plastic pipe?
Not by itself; it traces a conductive wire or compatible tracking aid.
Are batteries included?
Confirm the current package contents; the stored specifications identify the battery types required.
Why Buy From Big Frog Supply?
Big Frog Supply provides clear product information, helpful support, and convenient online ordering for underground locating equipment.
